When loads– or hundreds– of recessed downlights are mounted, an extremely bright aperture comes to be more than a visual inconvenience: it ends up being an irreversible visual-comfort issue that lowering alone might not resolve without lowering the lighting the job really needs.
So why is the reflector coating still dealt with like a cosmetic alternative?
A haze reflector is generally defined when a designer desires the effectiveness and light beam control of a metal recessed lighting reflector trim, however does not desire the sharp illumination, mirrored light image, or “ceiling filled with fronts lights” impact associated with a very sleek reflector.
That is the useful response. Yet it is not the whole response.
My candid sight is that haze trim is frequently advised too casually. It can improve regarded comfort, especially throughout lengthy sightlines and in lower ceilings, yet it can not rescue a shallow component, an exposed LED emitter, an extreme lumen bundle, or a severely chosen light beam angle.
The geometry still wins.
Use a haze reflector recessed illumination arrangement when occupants will frequently see the downlight apertures from throughout the area and you require a quieter look without compromising as much output as a dark baffle or black cone might absorb.
Typical applications consist of:
For broad business illumination, a 20W round LED downlight for general ceiling lighting is the sort of component where reflector appearance, protecting deepness, lumen outcome, and spacing has to be examined together. A haze surface may enhance aesthetic acceptance, however only the item’s photometric data can show what happens to beam distribution and high-angle strength.
Do not define haze just because words “anti-glare” shows up next to it. That label is commonly abused.
A haze reflector is usually an anodized aluminum or metal cone with a gently textured, semi-specular surface area. It stays reflective, however it creates an obscured reflection instead of the crisp mirror image developed by a clear or sleek reflector.
That difference issues.
A refined reflector may maximize optical effectiveness and create specific beam of light control, yet its surface can duplicate a brilliant picture of the lamp, COB, lens, or LED component. From certain watching settings, the reflector itself appears to illuminate.
A haze surface spreads that mirrored photo over a wider area. The peak brightness of the representation might therefore show up softer, also when the overall lumen result stays relatively high.
Cooper Lighting’s HALO recessed-lighting directory describes haze reflectors as reducing glow while keeping high efficiency. That is a reasonable recap, however it should not be taken a global performance guarantee: reflector depth, aperture dimension, LED position, beam of light angle, and surface area treatment still vary between item family members.
A haze reflector is not the same as:
These gadgets solve various troubles. Treating them as compatible is exactly how otherwise commendable requirements fail.
Haze reflectors reduce one certain part of glow: the intense, mirror-like representation of the light inside a metal downlight cone.
They might likewise make the transition between the bright aperture and the bordering ceiling really feel less sudden. This is particularly noticeable when components are seen obliquely from sofas, dining chairs, workdesks, passages, or retail aisles.
Yet there are three different glare devices to think about:
A haze reflector mostly deals with the second device. It might aid with the 3rd. It does not reliably get rid of the first.
That is the difficult reality.
When the LED remains noticeable at regular watching angles, much deeper recessing, a smaller aperture, a honeycomb louver, a better cutoff angle, or a lower-output optic normally matters greater than the surface. A 15W deep-recessed LED spotlight for gallery and gallery lights shows the stronger geometric approach: move the emitting surface area further over the ceiling airplane so the real estate literally guards it from typical sightlines.
The U.S. Department of Power made a wider yet relevant point in its November 2024 LED-upgrade assistance: LED distributions can enhance the opportunity of fixture glow compared with fluorescent systems, and real-space testing is recommended prior to a building-wide installation. The very same reasoning relates to recessed downlights. A making or directory picture is not a glare examination.
The haze vs white reflector dispute is regularly decreased to color choice. That is lazy requirements.
The surface changes how the aperture acts visually, how shown light is dispersed, and exactly how plainly the fixture appears when it is switched on or off.
| Trim or optic | Aperture look | Glow control | Outcome propensity | Ideal use |
|---|---|---|---|---|
| Haze reflector | Soft silver or satin gray | Modest reflected-glare reduction | Normally high | Comfortable ambient lighting with useful performance |
| Clear specular reflector | Bright, mirror-like metal surface | Reduced to modest | Often greatest | High ceilings, maximum result, firmly crafted circulations |
| White reflector | Blends with a white ceiling when off | Modest, product-dependent | Moderate to high | Residential and commercial ceilings where aesthetic assimilation issues |
| Black baffle | Dark aperture with ribbed interior | Good stray-light absorption | Often lower | Bedrooms, cinemas, lounges, low-light hospitality locations |
| Deep black cone | Extremely dark, aesthetically peaceful aperture | Strong when properly secured | Product-dependent | Galleries, luxury retail, dining establishments, present lights |
| Lensed or diffused trim | Visible luminous surface area | Softens source image but may continue to be brilliant | Normally less than open optics | Wet locations, corridors, utility rooms, broad diffuse illumination |
| Honeycomb or grille optic | Dark cellular face | Solid at oblique checking out angles | Can reduce outcome | Retail, hospitality, magnetic systems, focused accent light |
A white reflector is typically less aesthetically assertive when the luminaire is off. Once brightened, nevertheless, it might come to be a broad intense surface. A haze reflector usually looks somewhat darker than white but much less severe than black, making it a useful compromise for white ceilings.
A black baffle can offer stronger suppression of stray reflections, however it may create a populated pattern of dark apertures. In minimalist interiors, this may be willful. In standard household spaces, it can look commercial.
And a clear reflector? It is not immediately bad. In a 5 m ceiling where passengers hardly ever see deeply right into the component, optimizing useful light may be more practical than investing effectiveness to soften an aperture that is barely noticeable.
Haze trim is most useful where sightlines are shallow. In an eight-foot or 2.4 m property ceiling, a seated passenger can quickly see right into fixtures numerous metres away.
This is where refined reflectors tend to betray themselves.
For these spaces, I would initially check resource regression and aperture luminance, then contrast haze, white, and black samples at real placing elevation. A trim sample held under display room illumination informs you practically absolutely nothing.

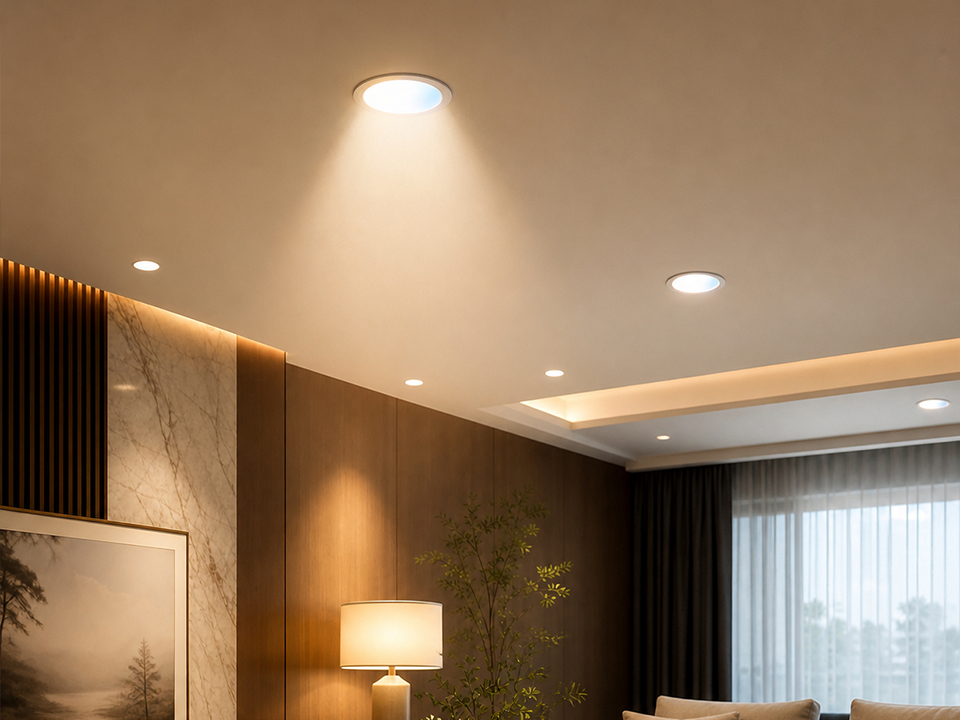

Open kitchen areas, dining areas, and living spaces frequently include 12, 18, or even 25 recessed downlights within one continual visual area. A solitary sleek reflector might be tolerable. A grid of twenty can resemble a flight terminal technique course.
Haze reflectors can minimize that duplicated glimmer while retaining a cleaner, lighter ceiling look than black cones.
However fewer fixtures with better circulation might be the much better solution. The sector rarely says this because selling eighteen downlights is less complicated than upgrading the layout around twelve.
Hotels, bars, lounges, and reception areas require regulated brightness because residents spend extended periods seated and frequently look across the space as opposed to right down.
A haze reflector helps ambient layers. For stronger accent layers, I prefer deeper optical control. A 12W magnetic grille light designed for anti-glare business insides may be more suitable where the resource should be screened from oblique views.
Haze reflectors can support flow illumination, but they are not instantly the very best reflector trim for recessed lights over paintings, fashion jewelry, mannequins, or goods.
Present lighting demands tighter control.
A 20W COB LED track limelight for accent and product lights or an adjustable 25W industrial LED limelight for retail display screens gives the developer directional aiming that a repaired haze downlight can not give.
For costs retail, I would usually divide the system into:
Attempting to make one recessed downlight perform all four roles produces mediocre results.
Big retail areas frequently suffer from fixture rep instead of glow from one private light. Hundreds of tiny bright apertures can produce visual mess even when each luminaire passes its technical specification.
Because instance, less continual components may be cleaner than another reflector surface. A 24W modular direct LED fixture for retail screen ceilings can form component of the ambient layer while flexible limelights manage goods.
This is not a debate against haze reflectors. It is a disagreement against addressing a format issue with a surface code.
A haze reflector is normally the wrong front runner in the adhering to circumstances.
If the LED component sits much above the ceiling aircraft and can not be seen from typical positions, altering from clear to haze might create only a minor aesthetic distinction.
The much deeper geometry has currently done the heavy work.
A controlled specular reflector might supply more useful lumens or tighter distribution. Haze treatments scatter reflections, and any kind of spreading can change the beam or lower peak intensity.
The specific difference is product-specific. Ask for data.
DOE’s April 2024 general-service-lamp guideline records NEMA’s observation that frosted lamps decrease glow while being a little less efficient. A frozen lamp and a haze reflector are not the same optical part, however the underlying trade-off recognizes: softening a bright optical photo might cost some performance or intensity.
A slim 10 °, 15 °, or 24 ° beam used for artwork, luxury goods, or building details requires meticulously managed optics. A haze surface area might soften the beam edge or minimize peak candela, relying on the design.
Utilize the reflector and lens combination tested by the producer. Do not assemble a trim, lamp, and housing from three unassociated item households and expect the published photometry to stay valid.
Showers, food-preparation areas, research laboratories, messy workshops, and some medical care environments may need a gasketed lens, cleanable surface, or particular ingress-protection score.
A decorative open haze reflector does not provide that security.
A 1,500-lumen downlight does not end up being comfortable merely because its reflector is satin-finished.
Reduce outcome. Increase component spacing. Usage dimming. Improve resource regression. Adjustment the light beam. Or redesign the lights layers.
Occasionally the trim is innocent.
Do not approve haze reflector trim from a finish chip alone. At minimum, demand an IES or LDT apply for the specific LED module, power level, beam of light angle, reflector, and trim mix.
I would evaluate:
| Information factor | What it discloses | Indication |
|---|---|---|
| Supplied lumens | Actual output after optic and trim losses | Only raw LED lumens are provided |
| Beam of light angle | Size of the main beam | One beam of light angle claimed for every single trim |
| Area angle | Width of lower-intensity spill light | Missing from accent-light requirements |
| Optimum candela | Beam of light intensity | Very high strength in a reduced ceiling |
| Zonal lumen distribution | Where light leaves the component | Extreme high-angle output |
| Cutoff or shielding geometry | Whether the source shows up | Superficial module close to ceiling airplane |
| Spacing requirement | Approximate harmony possibility | Fixtures laid out by uncertainty |
| CCT | Evident warmth: usually 2700 K, 3000 K, or 4000 K | Mixed CCTs across one ceiling |
| CRI and R-values | Colour rendering top quality | “High CRI” without a stated number |
| SDCM | Colour uniformity between fixtures | No tolerance specified for huge orders |
| Dimming range | Low-end control | “Dimmable” without any examined motorist checklist |
| Flicker data | Temporal light habits | No test method or percentage stated |
The DOE’s 2024 policy includes a depictive directional LED example of an 8 W GU5.3 MR16 producing 500 lumens, with 62.5 lm/W efficiency, a 25,000-hour ranked life, 2700 K CCT, and CRI 80. That degree of specificity is what specialist buyers ought to expect– not a pamphlet stating “soft light, high illumination.”
The same regulation referrals UL 1598C-2016 in its definition of an LED downlight retrofit kit. Qualification issues for item safety and retrofit suitability, however UL category does not tell you whether an aperture will really feel comfy from a couch or seminar table. Safety compliance and aesthetic high quality are separate checks.
DOE’s November 2024 assistance estimated prospective energy financial savings of 40%– 60% for LED retrofit sets and new LED luminaires compared with a fluorescent baseline. That is engaging, however an energy-saving job can still produce worse glare if the new circulation is not checked. Effectiveness does not excuse negative optics.
One maker’s haze may be a light satin silver. An additional might look darker, warmer, or virtually specular.
Call for a physical sample and created surface code.
Clients live with components while they are off, too. A haze cone might stay visibly grey against a white ceiling, whereas a white trim essentially disappears.
Provide both states.
A 700-lumen haze downlight will naturally show up much less hostile than a 1,400-lumen clear reflector. That does not confirm the finish created the enhancement.
Contrast equal power level, equivalent lumen output, equivalent beam of light angle, and equal dimming level.
Unified Glow Ranking can be useful for normal interior illumination plans, however several decorative or accent downlights are not presented with a solitary significant UGR value for every single feasible space geometry.
The luminaire, spacing, seeing instructions, area dimensions, surface reflectances, and observer placement all affect the outcome.
A four-fixture ceiling mock-up can reveal what a spreadsheet will not: reflected photos in a television, shimmer across a sleek stone counter, discomfort from a seated position, and the aesthetic rhythm of duplicated apertures.
Develop it early.
Yes, it costs cash. Changing 200 trims costs more.
A haze reflector is a recessed-light trim with a softly textured, normally plated metal inside that redirects valuable light while muting the sharp mirror image and high obvious brightness generated by a refined reflector, giving the aperture a quieter appearance without taking in as much light as a black baffle.
It is generally selected for property, friendliness, workplace, and retail interiors where residents can see numerous downlight apertures throughout the ceiling.
Haze reflectors reduce glow by scattering the sharp reflection of an LED source, light, or optical lens across a softly textured metal surface area, reducing the viewed intensity of the mirror picture while preserving much of the reflector’s capability to reroute light into the intended descending beam of light.
They do not necessarily conceal a directly visible LED. Deep recessing, securing angles, louvers, and reduced lumen output might still be needed.
A haze reflector is better when the concern is softening shown resource brightness while retaining a metallic reflector’s controlled distribution, whereas a white reflector is better when the priority is mixing the dark fixture right into a white ceiling and creating a much more extensively diffused aesthetic appearance.
Neither choice is widely premium. Compare physical samples, delivered lumens, high-angle strength, and off-state look.
The very best reflector trim for low ceilings is generally a deep, well-shielded optic with regulated result, selected after inspecting typical seated sightlines; a haze reflector can enhance reflected glare, while a black cone or grille might provide more powerful testing when residents can still see the source straight.
For ceilings around 2.4– 2.7 m, regression deepness often matters greater than reflector color.
A white trim can be changed with a haze reflector just when the brand-new trim is noted or accepted for the precise real estate, LED component, aperture dimension, thermal configuration, and electrical system, due to the fact that an incompatible reflector can change light beam circulation, retention, heat administration, security category, and service warranty insurance coverage.
Do not choose a replacement by small diameter alone. Confirm the housing series and maker compatibility table.
Haze reflectors appropriate for kitchen areas when they give comfortable basic illumination over flow and seating locations, however task areas over counters might require greater upright or straight illumination, bigger circulations, or extra under-cabinet lights as opposed to simply increasing the output of every recessed downlight.
Watch for reflections in polished stone, stainless steel, glass, and glossy cupboard surfaces. A sample installation deserves the initiative.
The most effective haze reflector recessed illumination specification ought to mention more than “15 W, 3000 K, haze trim.”
It must determine the specific real estate, LED component, reflector code, provided lumens, beam angle, CRI, SDCM tolerance, dimming procedure, ceiling height, placing detail, and called for photometric data.
And it needs to endure a mock-up.
For task rates or a spec evaluation, send the ceiling elevation, room measurements, target lux degree, fixture amount, beam preference, CCT, CRI, lowering requirement, and reflector surface. Request the IES or LDT data before authorizing the order– not after the ceiling has been reduced.
